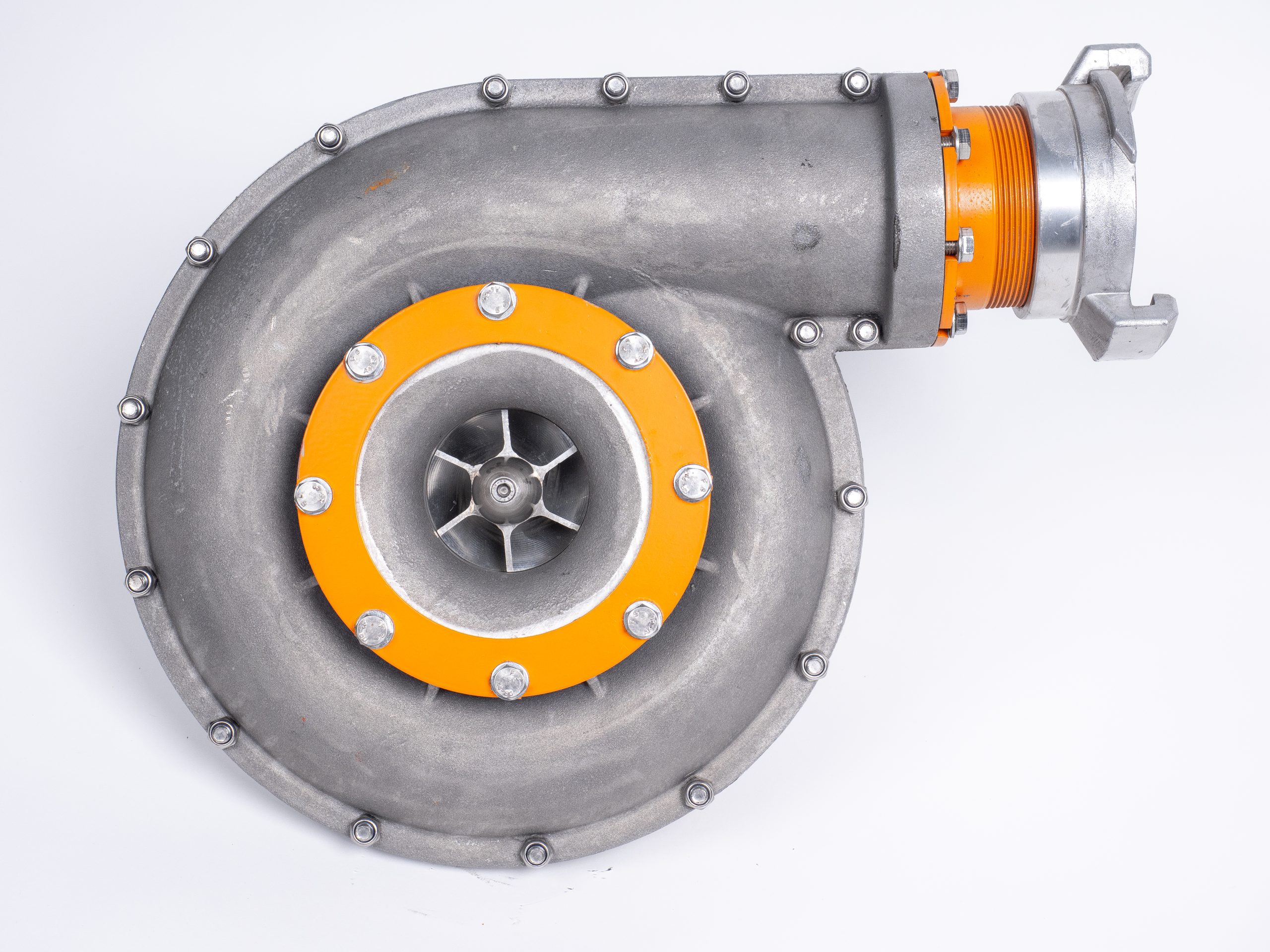

Hydraulically driven high-pressure pump designed for cleaning and fire-fighting applications. The frame and impeller are manufactured from high-quality aluminium. The pump is suitable for pumping clean water and tolerates dry running. Its simple construction ensures reliable operation and maintenance-free use.
The booster pump design allows flexible installation options. The hydraulic motor can be mounted in four different positions, and flange-mounted suction and discharge connections enable a wide range of installation configurations. The pump can also be used as a submersible unit when required.
The Reini booster pump is intended for pumping clean liquids. Typical applications include various types of washing and cleaning equipment, wildfire suppression systems, and mobile fire-fighting units installed on forestry and off-road machinery. Thanks to its compact size and flexible mounting options, the pump can be installed in locations where space is limited.
Technical specifications
- Max. allowable hydraulic flow: 95 l/min
- Max. allowable hydraulic pressure: 350 bar
- Pressure port: 3/4″ female thread
- Return port: 3/4″ female thread
- Drain line: 3/8″ female thread
- Output at zero pressure: 1600 l/min
- Max. water pressure: 14 bar
- Inlet connection: 4″ flange (8-bolt flange included)
- Outlet connection: 3″ flange (R3″ male thread included)
- Weight: approx. 18 kg
